SOPTOP · 3D Digital Microscope

DMS1000 3D Super-Depth Digital Microscope

A microscopy system revolution — stepping into the era of digital 3D measurement.

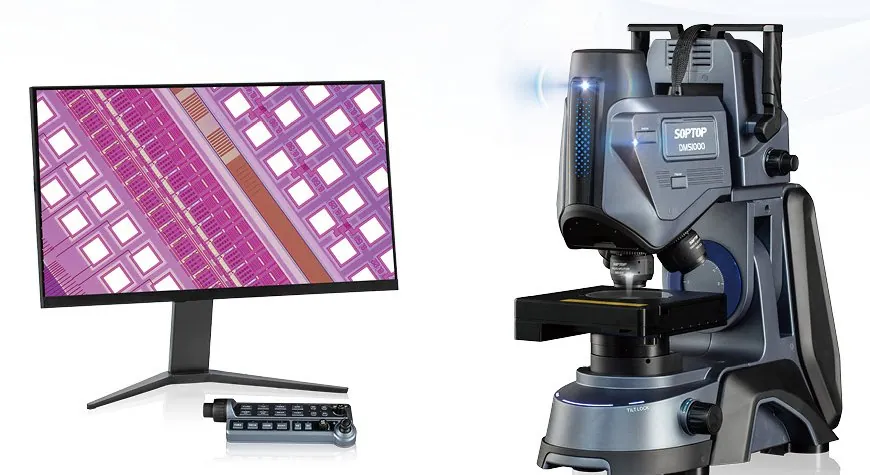

SOPTOP DMS1000 3D super-depth digital microscope with 4K monitor and controller

Motorized. Digital. Intelligent.

DMS1000 · 20× – 7,500×

An all-in-one motorized digital microscope with a full range of observation angles and multiple lighting methods. Greater depth of field, a wider field of view and higher magnification make surface observation and analysis faster and easier — while SOPTOP's in-house image-processing algorithms keep images sharp and measurement data accurate across every application.

Magnification
20× – 7,500×
Camera
4K CMOS · up to 12 MP
Observation tilt
±90° with angle sensor
Stage
230 × 245 mm · 5 kg
Request a quote View specifications
Key features

Ultra-deep field of view

Every part of the system — from controller to optics to software — is built for fast, accurate 3D observation.

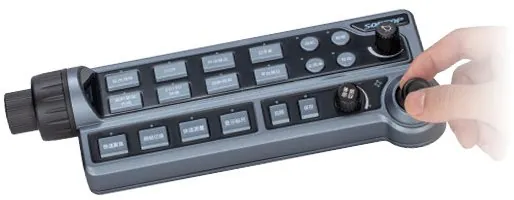

DMS1000 handheld controller
01

Intelligent operating system

Place the sample on the stage — positioning, focusing and magnification changes are all done intuitively from a single controller.

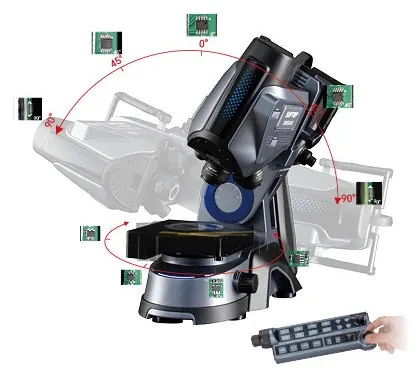

DMS1000 tilting head for omni-directional observation
02

Omni-directional observation

  • Clutch-control technology — the head holds at any angle as soon as the button is released.
  • The head tilts from −90° to +90°, giving panoramic views without tilting the sample.
  • A built-in angle sensor auto-calibrates, keeping the view synchronized with the operation when the stage is rotated ±90°.

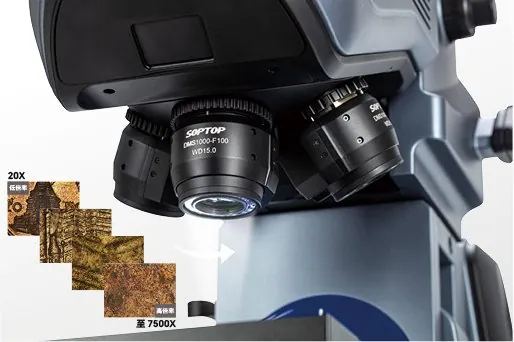

DMS1000 APO series objective lenses
03

Professional APO objective lenses

Dedicated APO-series objectives switch magnification quickly from 20× to 7,500× — one button covers every observation need.

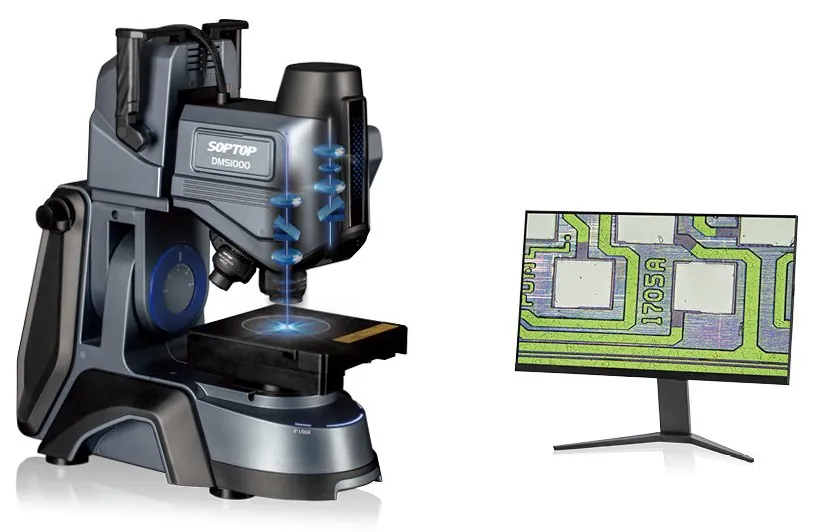

DMS1000 with 4K monitor showing a circuit board
04

Ultra-high precision observation

  • Ultra-high-resolution 4K CMOS with ultra-high-resolution APO telecentric objectives.
  • The pairing delivers large depth of field and high resolution at the same time.
  • Seamless zoom from 20× to 7,500× without swapping objectives, with a wide choice of illumination modes.

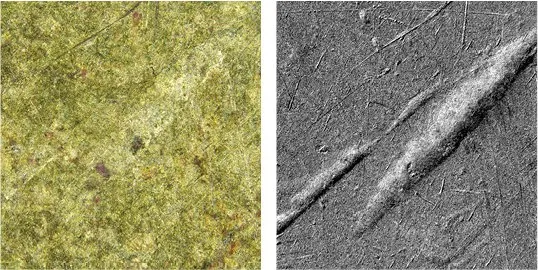

Standard image compared with reflection transformation
StandardReflection transformation
05

The smallest bumps and dents, clearly visible

Multi-angle illumination and algorithmic fitting reveal surface detail in one click — even tiny bumps stand out — making full use of SOPTOP's telecentric APO high-resolution objectives.

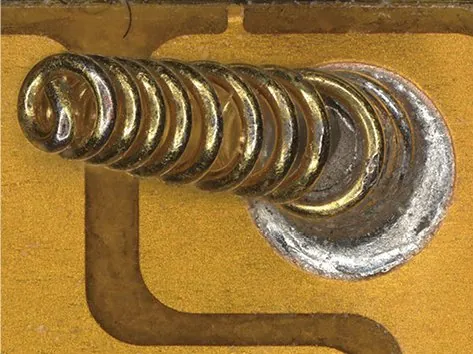

Depth-of-field fusion image of a spring on a circuit board
06

Image processing — depth-of-field fusion

Optics and algorithms work together to produce clearer, more three-dimensional images for a richer viewing experience.

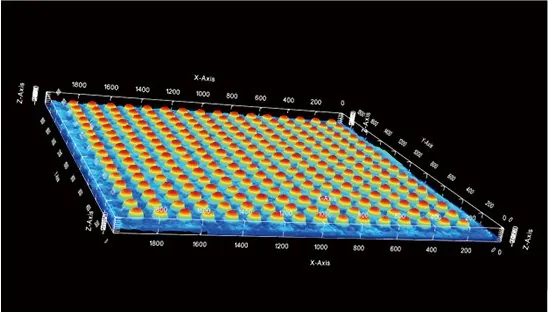

3D stitched height map
07

Image processing — image stitching

  • Press the stitching button to seamlessly join multiple images into one overview image — with no shift.
  • Move the stage while capturing and the system stitches in sync to build 3D data of the whole shape.

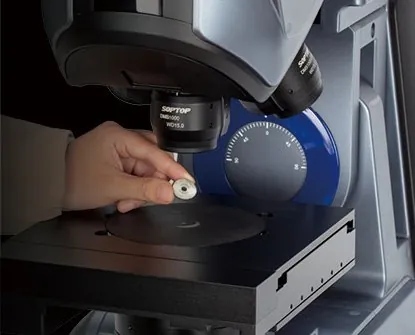

Placing a sample under the DMS1000 objective
08

A revolutionary measurement experience

Cross-field measurement, intelligent plane measurement, 2D / 3D measurement, contour measurement and more.

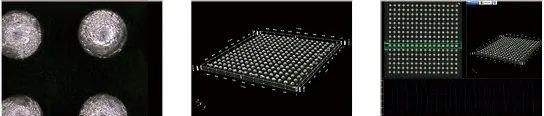

2D, 3D and contour measurement examples
2D3DContour
Applications

A wide range of samples

Semiconductor, electronics, lithium battery, automotive, materials, precision machining and more.

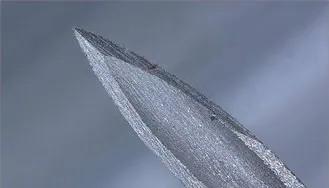

Needle tip, 80×, depth fusion
Needle80× · Depth fusion

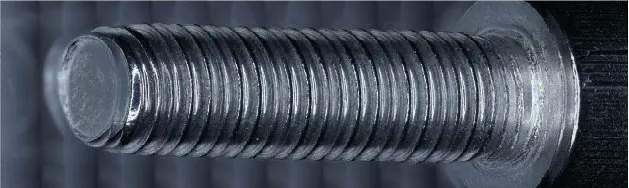

Screw, 80×, 3D stitching
Screw80× · 3D stitching

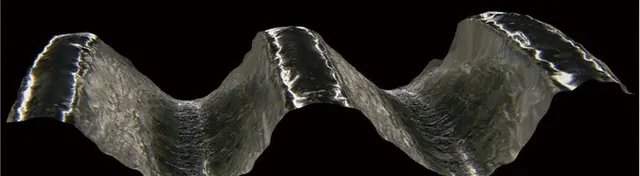

Screw thread, 200×, 3D reconstruction
Screw thread200× · 3D reconstruction

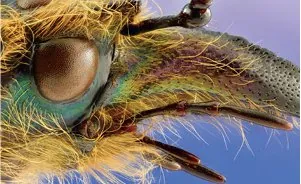

Beetle, 700×, 3D stitching
Beetle700× · 3D stitching

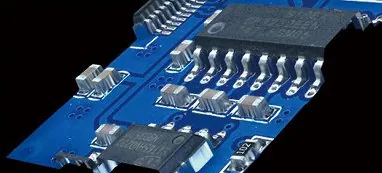

Circuit board, 80×, 3D stitching
Circuit board80× · 3D stitching

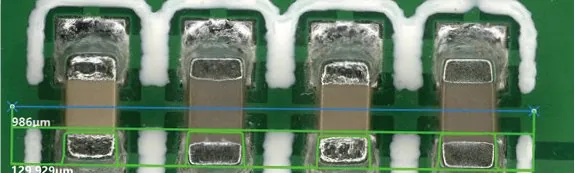

Circuit board, 80×, 3D measurement
Circuit board80× · 3D measurement
Metal surface, 400×, ring illumination
Metal surface400× · Ring illumination
Leather, 400×, ring illumination
Leather400× · Ring illumination

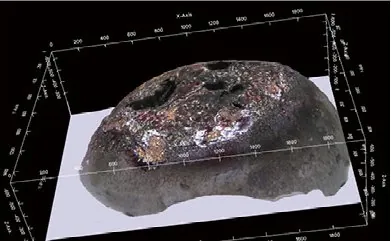

Metal bead, 200×, 3D measurement
Metal bead200× · 3D measurement
Specifications

DMS1000 specification

ItemDMS1000
Optical systemTelecentric continuous zoom system
Total magnification20 – 7,500×
Magnification switchingElectric switching
Camera1/1.8″, 3.2 MP, max 50 fps
1/1.7″, 12 MP, max 30 fps
1/1.8″, 5 MP, max 42 fps
IlluminationCoaxial episcopic, coaxial oblique, annular, segmented annular, mixed, transmitted
Stage
Stage size230 × 245 mm
Travel rangeMax. 100 × 100 mm
Rotation angle (with angle recognition)Max. ±90°
Load capacity5 kg
Microscope frame
Upper Z-axis travel51 mm
Upper Z-axis controlElectric, handwheel, controller, software
Lower Z-axis travel50 mm
Lower Z-axis controlElectric, handwheel
Tilt angle (with angle recognition)±90°
System
ControllerControls the linkage of all components
Computer28″ 4K Ultra HD LCD monitor; Intel i7 CPU; 32 GB memory; SSD + HDD storage
Software
Imaging
  • 2D imaging
  • 3D imaging
  • Image processing
  • Stitching
  • Multi-area shooting
Measurement
  • Rapid
  • Cross-field
  • Planar
  • Point height
  • Automatic
  • 3D
  • Contour
  • Particle counting
Other
Power100 – 240 VAC, 50/60 Hz
Dimensions602 × 346 × 692 mm (excluding computer and controller)

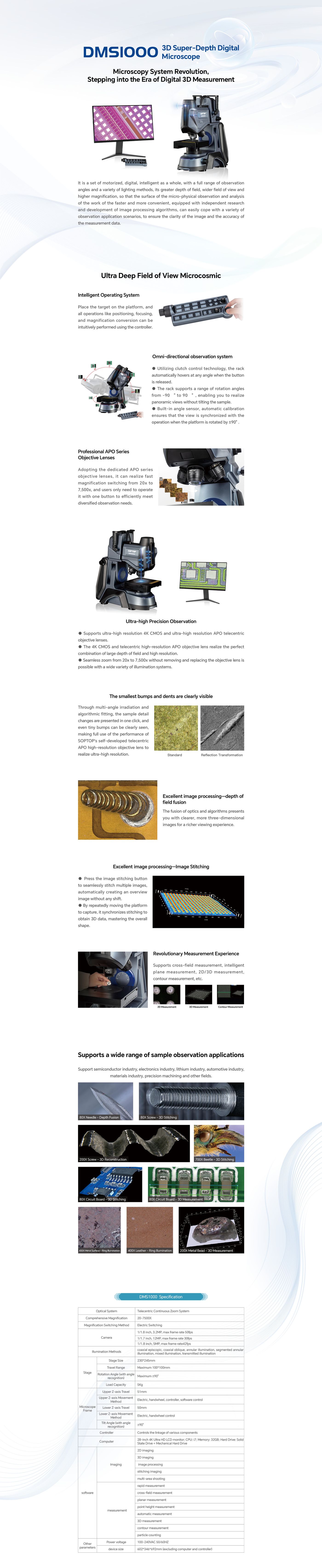

Original datasheet (image) ← All SOPTOP models

Interested in the DMS1000?

Send us your sample type and inspection goals — we'll arrange a demo and recommend the right configuration.

Request a quote
