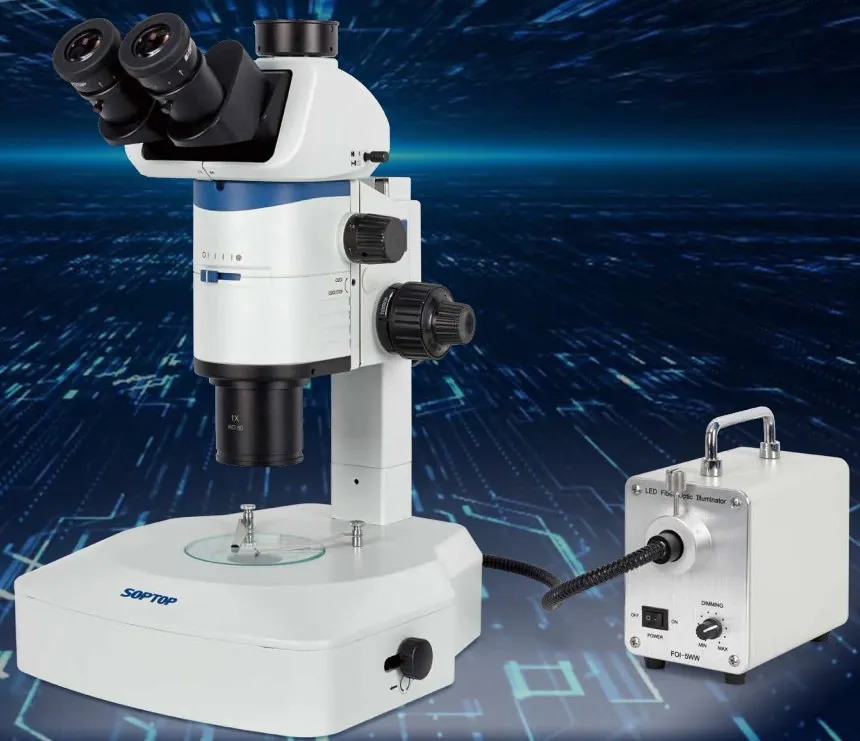

A research-grade stereo microscope with a 12.5:1 zoom, apochromatic optics and smart, adjustable illumination — equally at home inspecting PCBs and chips or supporting biological experiments and cell culture.
Optics and illumination engineered for true-to-life stereo imaging.

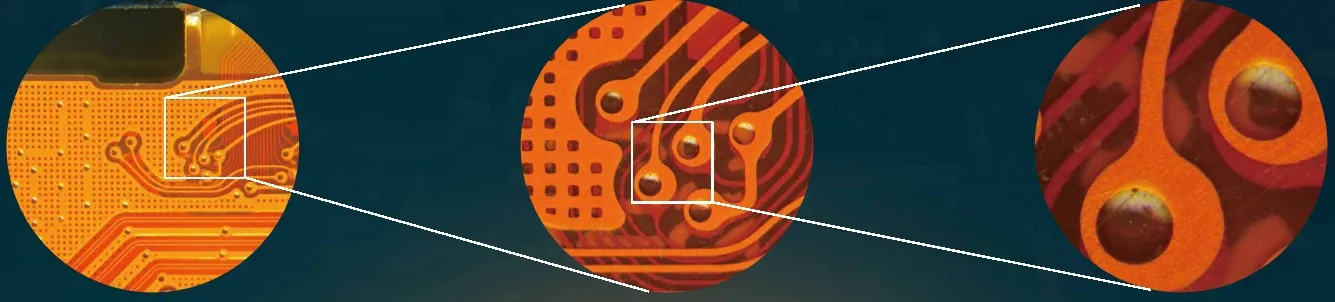

Zoom from 0.63× to 8× with a click stop at every main step — and the click stops can be released manually for smooth, continuous zooming.

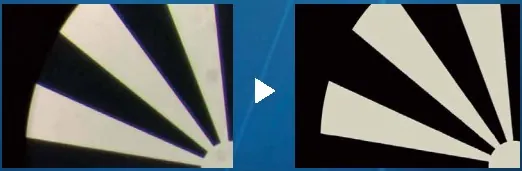

The apochromatic design greatly improves color rendition. By correcting axial chromatic aberration for red, green, blue and violet and converging them on one focal plane, the objective shows the sample's real color.

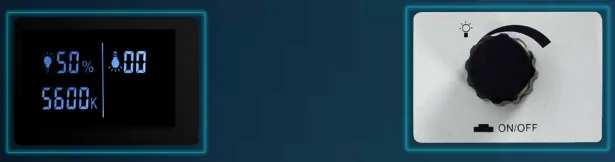

Turn the dimmer to adjust brightness — the exact percentage appears on the LCD in the base, making it easy to record the best backlight setting for each sample.

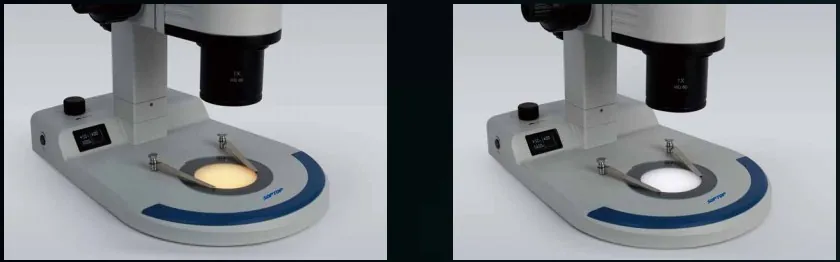

Tune the color temperature to create the ideal imaging background for different samples and working environments — from warm yellow light to 5600 K natural white light.
Supports life science research, biological experiments, chemical analysis and cell culture.
An indispensable tool for surface inspection of PCB, SMT, semiconductor chips, metal materials and precision components.
| Item | SZX12 |
|---|---|
| Viewing head | Tilting trinocular head, 5° – 45° adjustable; binocular : trinocular = 100:0 or 0:100; IPD 50 – 76 mm; fixed eyepiece tubes with lock screw 30° inclined trinocular head; binocular : trinocular = 50:50; IPD 50 – 76 mm; fixed eyepiece tubes with lock screw |
| Eyepieces | High eye-point wide-field plan eyepieces, diopter adjustable: PL10×/22 mm · PL15×/16 mm · PL20×/12.5 mm |
| Zoom range | 0.63× – 8×, zoom ratio 12.5 : 1; built-in aperture diaphragm; click stops at 0.63×, 0.8×, 1×, 1.25×, 1.6×, 2×, 2.5×, 3.2×, 4×, 5×, 6.3×, 8× |
| Main objectives |
|
| Body | Coaxial coarse and fine focus, integrated body with focus holder; coarse range 50 mm, fine precision 0.002 mm |

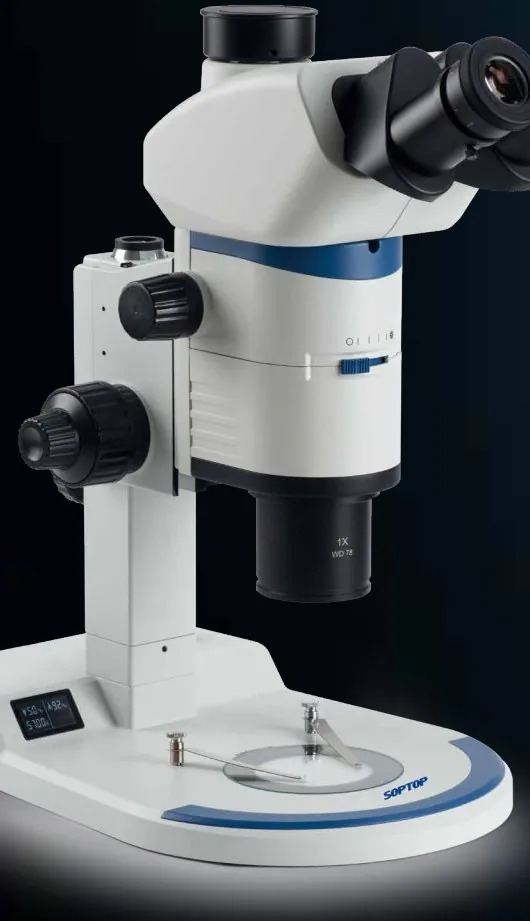

| Base | Plan base without illumination, with black & white plate (Ø 100 mm) Plan base with transmitted illumination (with external 5 W LED fiber light); built-in 360° rotatable mirror, adjustable position Ultra-thin base, multi-LED (5 W), with digital readout of light intensity and color temperature (3200 – 5600 K) |
| Illumination | 5 W LED light box (270 × 100 × 130 mm) with single fiber (500 mm), color temperature 5000 – 5500 K; 100 – 240 VAC, 50 – 60 Hz, output 12 V LED ring lamp (200 bulbs) |
| Camera adapter | 0.5× / 0.65× / 1× C-mount |
