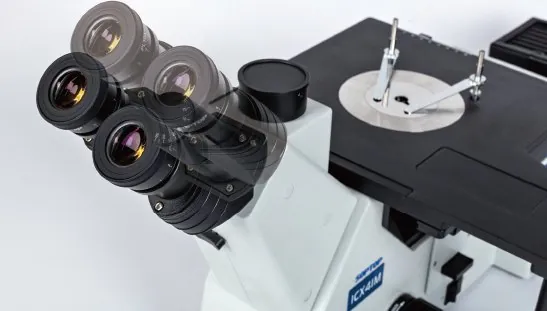

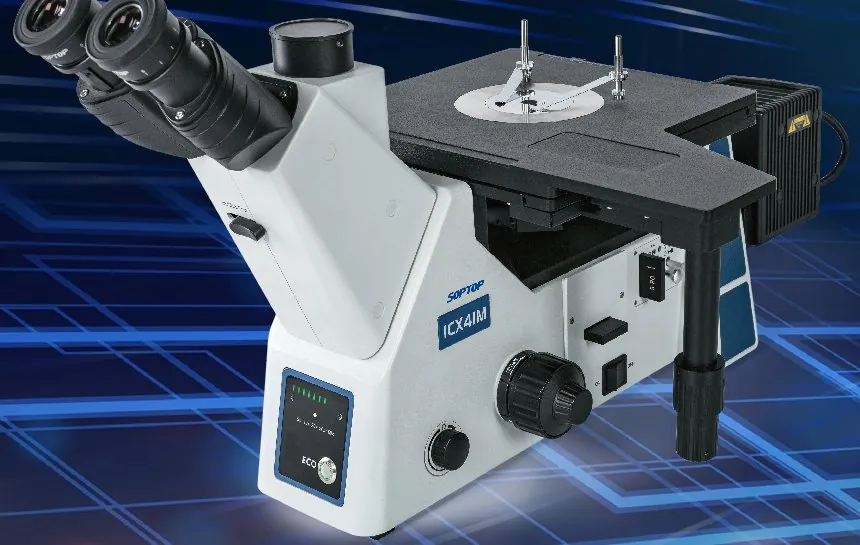

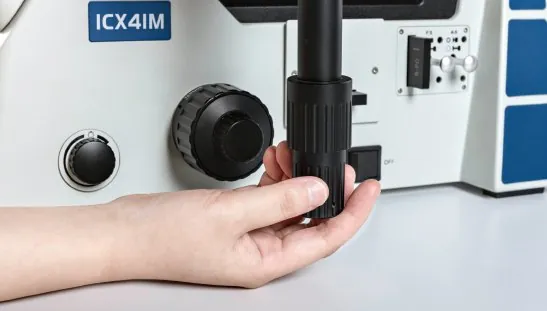

With the sample placed face-down on a large stage, the inverted ICX41M handles polished metal specimens of any height. A rotatable head, low-position controls, a magnification read-out and an energy-saving ECO sensor make it comfortable for long shifts in the lab or on the production floor.
Thoughtful details that make everyday metallographic inspection easier.

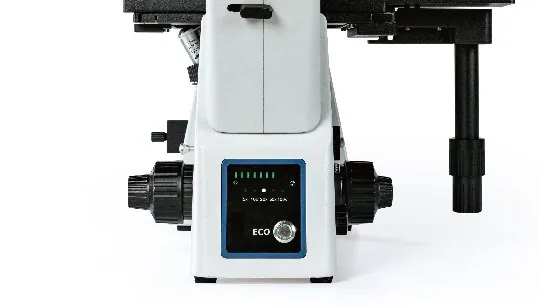

On an inverted microscope the objectives sit behind the stage and can't be seen. A built-in sensor shows the objective magnification in use on the front panel for convenience.

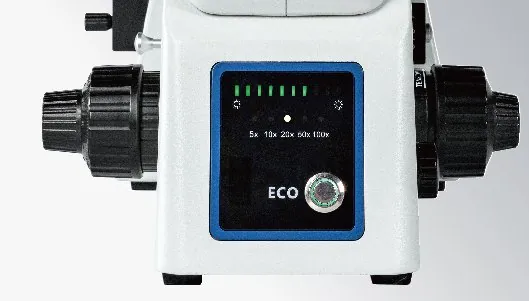

An ECO infrared sensor switches the microscope off after a preset time when no operator is present — saving energy and extending service life.
Supporting bright field, dark field, polarizing and differential interference contrast, the ICX41M serves a wide range of research.
| Item | ICX41M |
|---|---|
| Optical system | Infinity color-corrected optical system |
| Viewing head | 45° inclined trinocular head, 360° rotatable; IPD 50 – 75 mm; binocular : trinocular = 100:0 or 0:100 |
| Eyepieces | High eye-point wide-field plan eyepiece PL10×/22 mm, adjustable diopter, reticle attachable High eye-point wide-field plan eyepiece PL15×/16 mm, adjustable diopter |
| Objectives | Long-WD plan achromatic metallurgical objectives 5×, 10×, 20×, 50×, 100× Long-WD bright & dark field plan achromatic metallurgical objectives 5×, 10×, 20×, 50×, 100× |
| Nosepiece | Inward quintuple bright-field nosepiece (DIC slot) with built-in magnification sensor Inward quintuple bright & dark field nosepiece (DIC slot) with built-in magnification sensor |

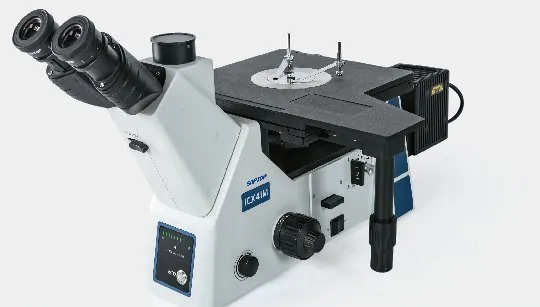

| Frame | Reflected frame with low-position coaxial focusing; coarse range 9 mm (up 6.5 mm, down 2.5 mm), fine precision 0.002 mm; upper limit and tension adjustment; bright / dark field switch; variable field and aperture diaphragms, both centrable; slots for filters and polarizing kit; light-intensity indicator; infrared induction; magnification display |
| Illumination | External power adapter, input 100 – 240 V, output 15V13.4A; adjustable intensity |
| Stage | Three-layer rackless stage, 240 (W) × 250 (L) mm; travel 50 × 50 mm; low-position handle knob |
| Camera adapter | 0.35× / 0.5× / 0.65× / 1× focusing C-mount |
| Others |
|
