An integrated zoom optical module with a high-definition camera. Display, camera and ring lamp share one power supply — no tangle of cables. Compared with traditional optical microscopes, the built-in camera and screen make observation easy, add digital magnification and image storage, and spare users the fatigue of long sessions at the eyepieces.

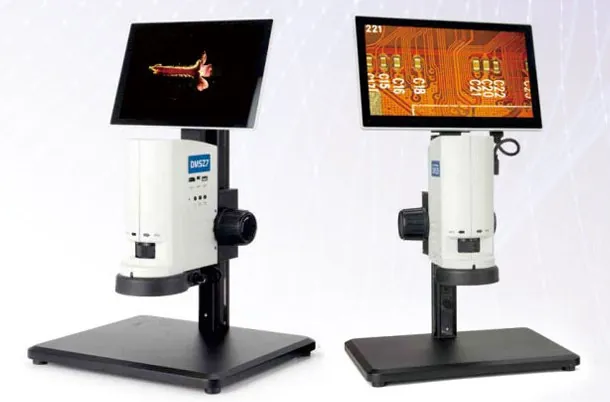

DMSZ7 adds flexibility for education; DMSZ8 adds reliability for industrial inspection.

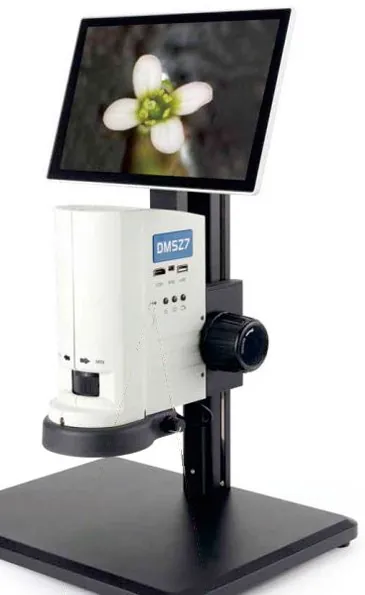

DMSZ7 zooms from 0.7× to 5× (7:1). Paired with a large plan base and 225 mm focusing range, it handles big and varied samples with up to 170 mm working distance.

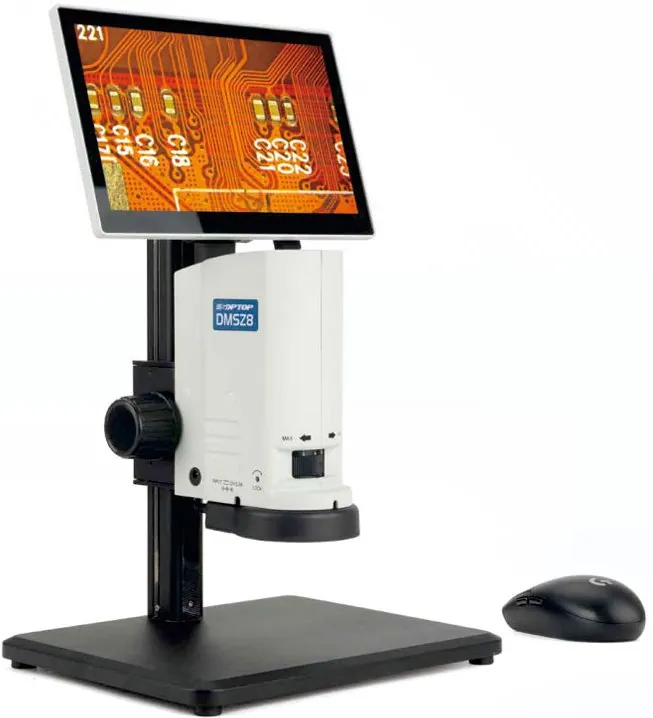

A 2.0 MP camera with a 12-inch HD display (1920 × 1080, 60 fps). Low image noise and high contrast deliver smooth, lag-free imaging at high resolution.

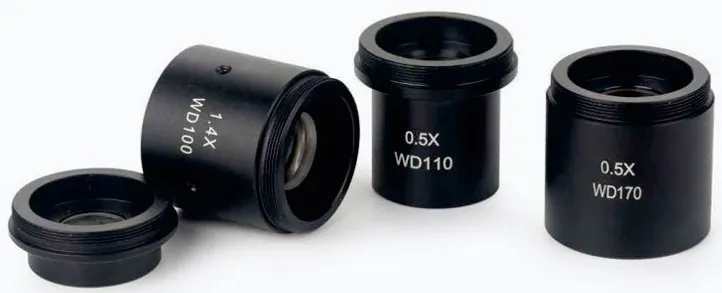

Swap main objectives to extend the zoom range — from a full overview of the sample to fine detail. DMSZ7 offers 0.5×, 1× and 1.4× objectives; DMSZ8 offers 0.5× and 1×.

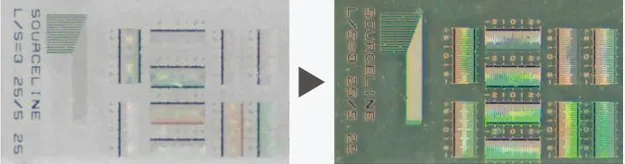

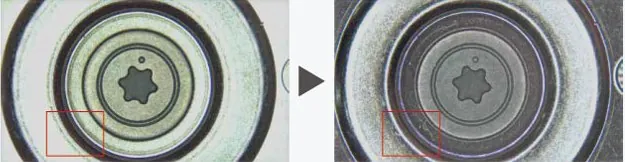

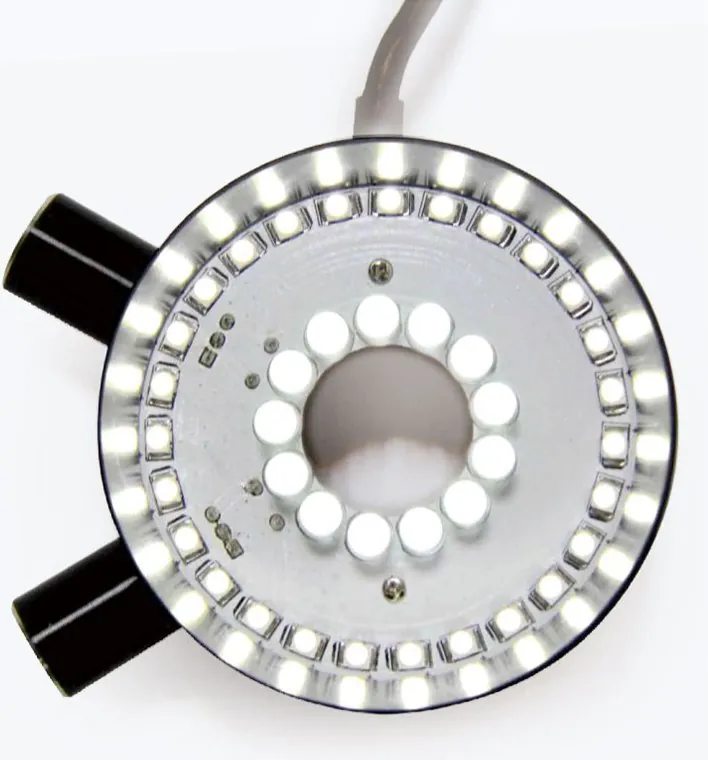

Inner and outer rings have separate intensity controls. The outer ring acts as oblique light to bring out more detail; the inner ring acts like near-coaxial light for accurate, repeatable imaging.

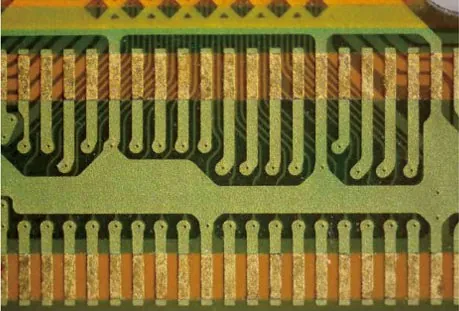

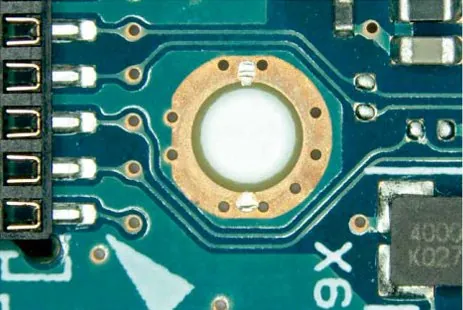

Biology teaching, electronics and PCB inspection, textiles and more.
| Model | DMSZ7P | DMSZ7 |
|---|---|---|

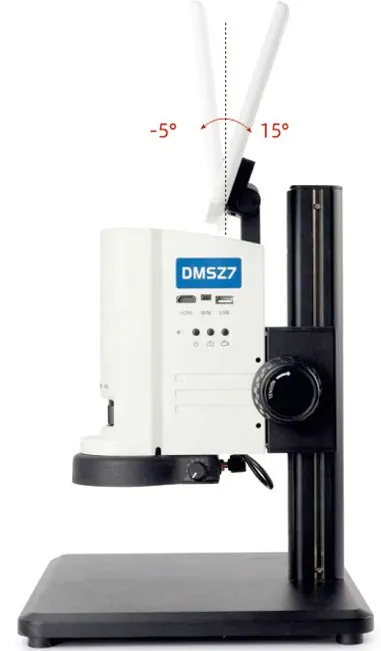

| Display | 10″ IPS touch-screen (−5° ~ 15° tilt) | — |
| Optics & camera | Zoom lens 0.7× – 5×; built-in 4.0 MP CMOS camera (1/3″ sensor) with OSD menu and high dynamic range; 16 GB RAM; SD card up to 32 GB; HDMI, USB 2.0, mini USB 2.0 output; wireless mouse support | |
| Objectives |
| |
| Illumination | LED ring lamp, 56 bulbs, adjustable intensity, 5000 – 5500 K LED ring lamp, two circles with separately adjustable intensity, 5000 – 5500 K | |
| Base | Large plan base, lifting range 225 mm | |
| Accessories | 1.5 m USB cable; 5 m HDMI cable | |
| Model | DMSZ8 | DMSZ8P | DMSZ8C | DMSZ8CP |
|---|---|---|---|---|
| Display | — | 12″ HD LCD, 1920 × 1080 (−5° ~ 15° tilt) | — | 12″ HD LCD, 1920 × 1080 (−5° ~ 15° tilt) |
| Optics & camera | Zoom lens 0.7× – 5×; built-in 2.0 MP CMOS camera (1/2″ sensor); USB flash disk up to 128 GB; HDMI, USB 2.0 output; wireless mouse support | Zoom lens 0.7× – 5×; built-in 2.0 MP CMOS camera (1/2″ sensor) with measuring software; USB flash disk up to 128 GB; HDMI, USB 2.0 output; wireless mouse support | ||
| Objectives |
| |||
| Illumination | LED ring lamp, 56 bulbs, adjustable intensity, 5000 – 5500 K LED ring lamp, two circles with separately adjustable intensity, 5000 – 5500 K | |||
| Base | Large plan base, lifting range 225 mm | |||
| Accessories | 5 m HDMI cable, 32 GB USB flash disk, wireless mouse | |||
Tell us whether it's for teaching or production inspection — we'll recommend the right DMSZ7 / DMSZ8 model.
