Breakthrough in Corn Genetic Editing with MSHOT MZX100

MSHOT Stereo-fluorescence Microscope MZX100

       Corn, as one of the worlds three major staple crops, is of crucial importance in the development of genetic transformation technologies, which are directly tied to national food security. However, a long-standing challenge in the industrythe severe genotype dependencehas acted as a barrier, hindering the direct incorporation of superior genes into most commercial corn varieties.

       Recently, a team from China Agricultural University, led by Liu Shengnan, published a groundbreaking study in the journal Plant Communications, in which they successfully identified the key to overcoming this obstaclethe key transcription factor ZmHSCF1

Industry Challenge: High-Quality Varieties Resistant to "Transformation"
     Traditional corn genetic transformation is akin to a precise surgical procedure, where Agrobacterium must successfully infect plant cells and induce the formation of embryogenic callus tissue capable of regeneration.

     However, the reality is far more challenging. Many commercial corn inbred lines that carry superior agronomic traits (such as PH4CV and Zheng58) can be infected by Agrobacterium but fail to efficiently initiate callus formation or form calluses that lack the ability to regenerate embryos. This results in extremely low, or even zero, transformation efficiency.

     As a result, researchers often must work around this limitation by first editing genes in a few genetically tractable model lines and then, through time-consuming backcross breeding over several years, incorporate the desired traits into commercial varieties. This process is expensive and prone to undesirable side effects.

Breakthrough: ZmHSCF1A Specialized Accelerator for "Embryogenic Callus" Proliferation
     In the face of this challenge, the research team took an innovative approach, drawing inspiration from the regeneration mechanisms of Arabidopsis and conducting a systematic screening. Ultimately, they identified a special AP2 transcription factor in cornZmHSCF1.

     The study confirmed that ZmHSCF1 does not affect the infection efficiency of Agrobacterium but instead focuses its full effect on a critical post-infection stagespecifically promoting the formation and proliferation of embryogenic callus tissue in a highly specific and efficient manner.
So, how could the team visually observe and quantify this promotive effect?
The MSHOT Stereo-fluorescence Microscope MZX100 played an irreplaceable role in this process. The research team introduced red fluorescent protein (RFP) markers into the callus tissue and continuously monitored and photographed the samples using the MZX100.

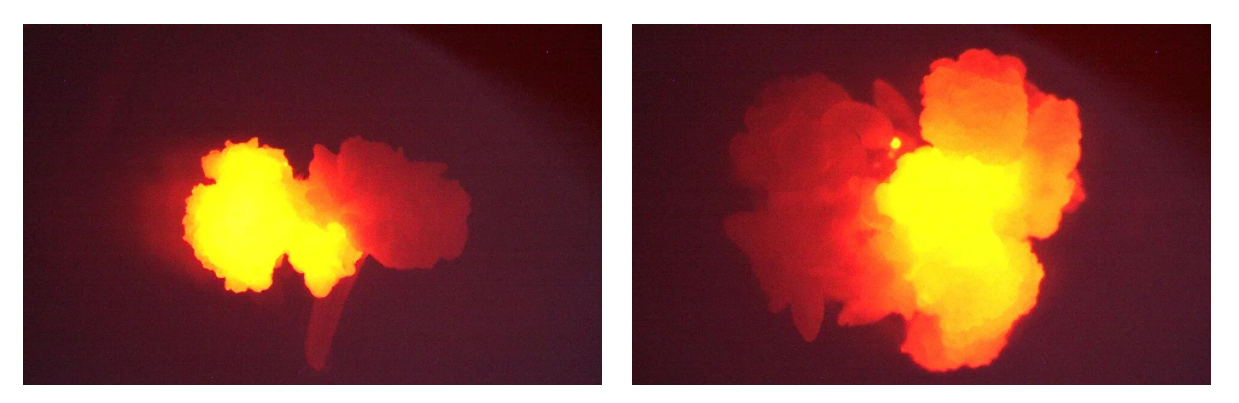

Qualitative Observation: The high-contrast fluorescence images captured by the MZX100 clearly showed that, after overexpressing ZmHSCF1, the number and vigor of RFP-positive callus tissues (indicating successful transformation) were significantly higher than the control group.

Quantitative Analysis: The research team further utilized the images captured by MZX100 to precisely quantify the fluorescence area. The data revealed that the proliferation rate of positive callus tissue increased an astonishing 21.64-fold after overexpressing ZmHSCF1. This key data was derived from comparing the fluorescence area growth on day 7 and day 14, providing clear evidence that ZmHSCF1 dramatically accelerated the proliferation of positive callus tissue.

About MZX100
The MZX100 is a high-performance stereo fluorescence microscope with a wide magnification range. It uses high-quality Galilean parallel dual optical paths to offer high resolution and true-to-life color, making it ideal for routine biological, medical, agricultural, forestry, industrial, and scientific research applications.

• Wide Magnification Range: The magnification ratio can reach up to 10:1, and with the standard 1X plan objective lens, the MZX100 supports continuous magnification from 8X to 80X, providing flexible and clear imaging.
• Upgradable Fluorescence Observation: With its infinite parallel dual optical path design, the MZX100 can be upgraded with fluorescence modules to enable multi-channel fluorescence observation such as BGU, making it easy to use for various fluorescence applications.
• Multiple Base Options: The MZX100 offers various base options, including transmission/reflection bases, adjustable angle transmission bases, and base-less models to suit a wide range of sample types, from standard samples to transparent samples.
• Dual Objective Lens Switching: The MZX100 features a unique dual objective lens switching system, allowing quick transitions between 0.5X and 1X objective lenses, balancing high magnification with a long working distance.


The theoretical breakthrough was finally put to the test in practice. The research team validated the value of ZmHSCF1 in two well-known difficult-to-transform commercial corn inbred lines:

In PH4CV (parent line 335), the transformation efficiency increased from 0.9% to 9.6%, a more than 10-fold improvement.
In Zheng58 (parent line 958), the transformation efficiency achieved a historic breakthrough from 0% to 7.2%.
These results show that ZmHSCF1 successfully opened the door to gene editing for elite corn varieties that were previously resistant to transformation.

 Conclusion:
This research from China Agricultural University exemplifies the perfect integration of biological insight and advanced research tools. The discovery of ZmHSCF1 provides a new solution to the industrys long-standing challenges in corn genetic transformation.

Meanwhile, the MSHOT Stereo-fluorescence Microscope MZX100, with its reliable fluorescence imaging performance, visualized the functions of genes through a series of images and data, making the scientific discovery process clearer and more reliable.
